SPECIFICATIONS

ABXY Switch Type: Tactile switch

Battery Included: Yes

Bumpers Switch Type: MICRO SWITCH

Compatible Brand/Model: PC

Compatible Platform: Nintendo Switch,playstation,PC,Android,iOS

D-pad Switch Type: MICRO SWITCH

Hall Effect: Yes

High-concerned chemical: None

Interface Type: 2.4G,Type C

Joystick Sensor Module Brand/Type: Hall

Model Number: 775

PC System: Windows 7

Package: Yes

RGB lighting joysticks: No

Support Software configuration: No

Trigger Button Type: Hall-Linear

Type: Gamepads

Wear-resistant joysticks: Yes

Product Features:

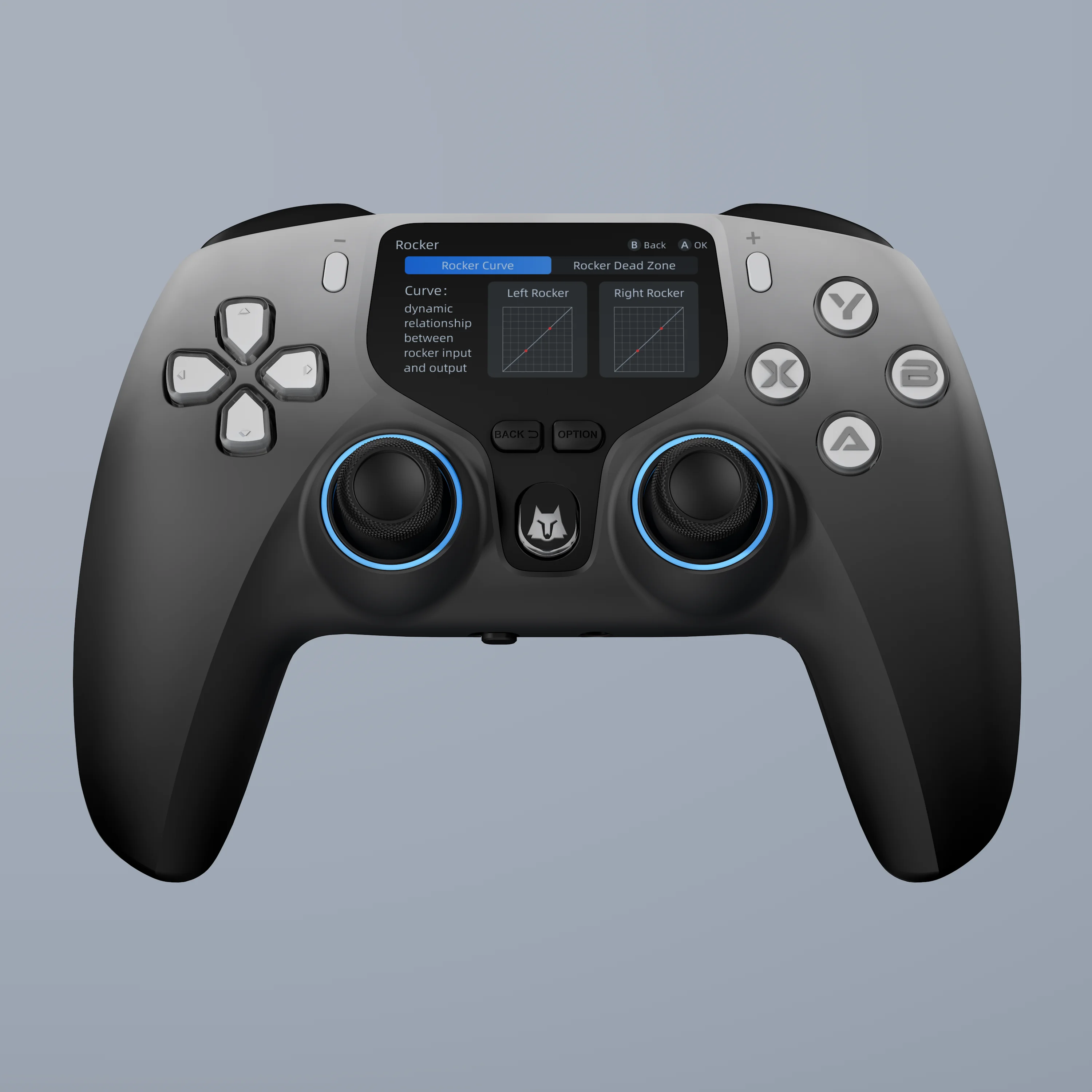

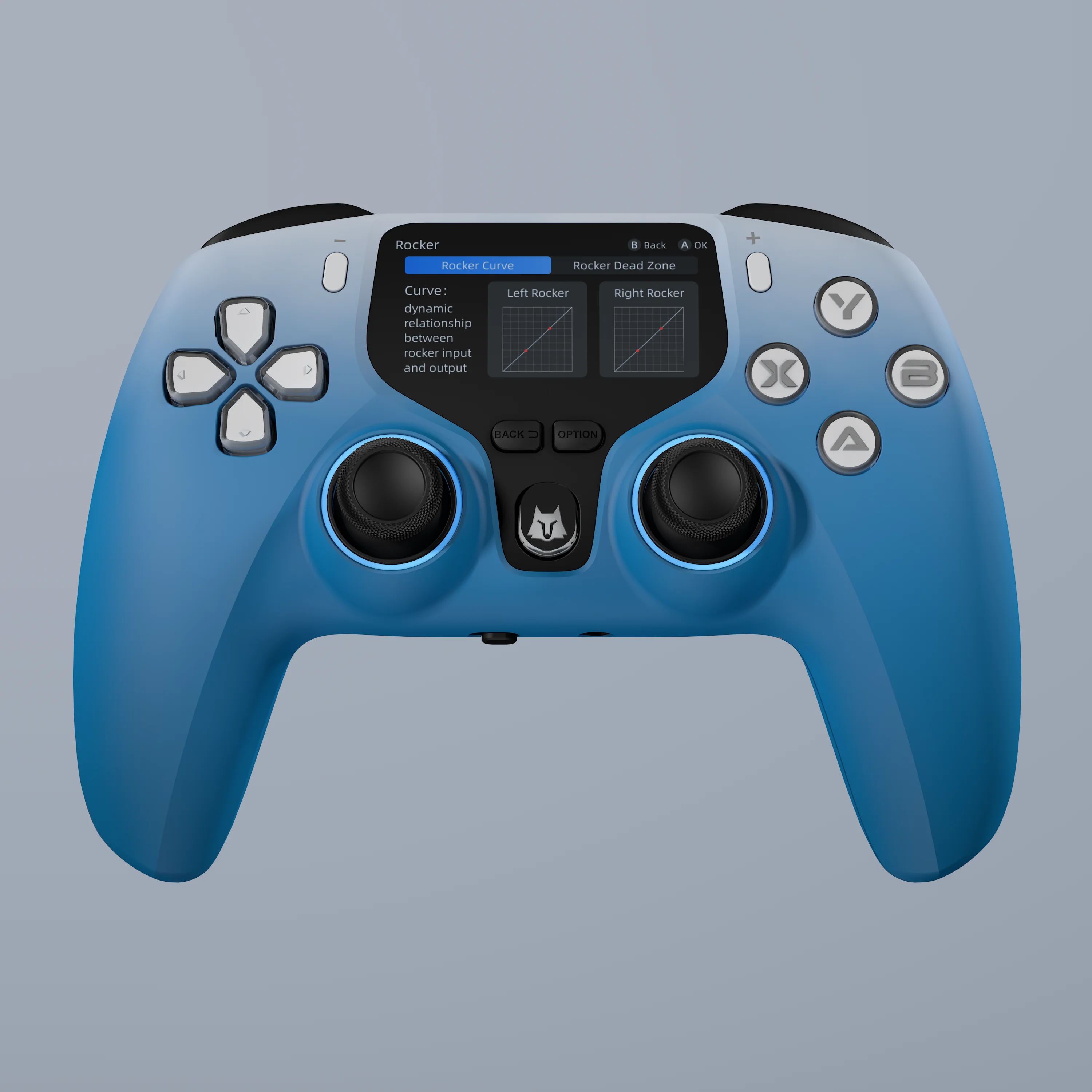

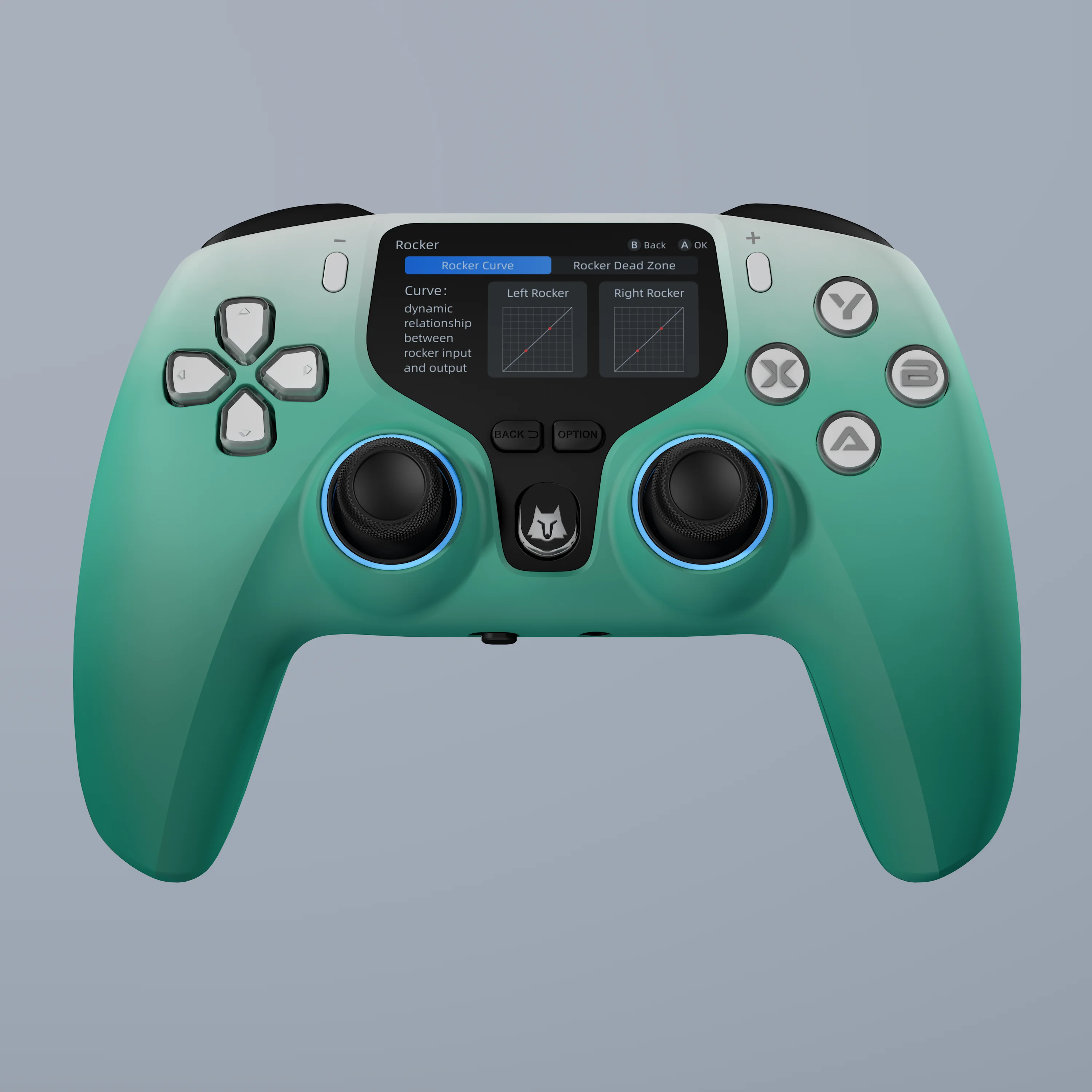

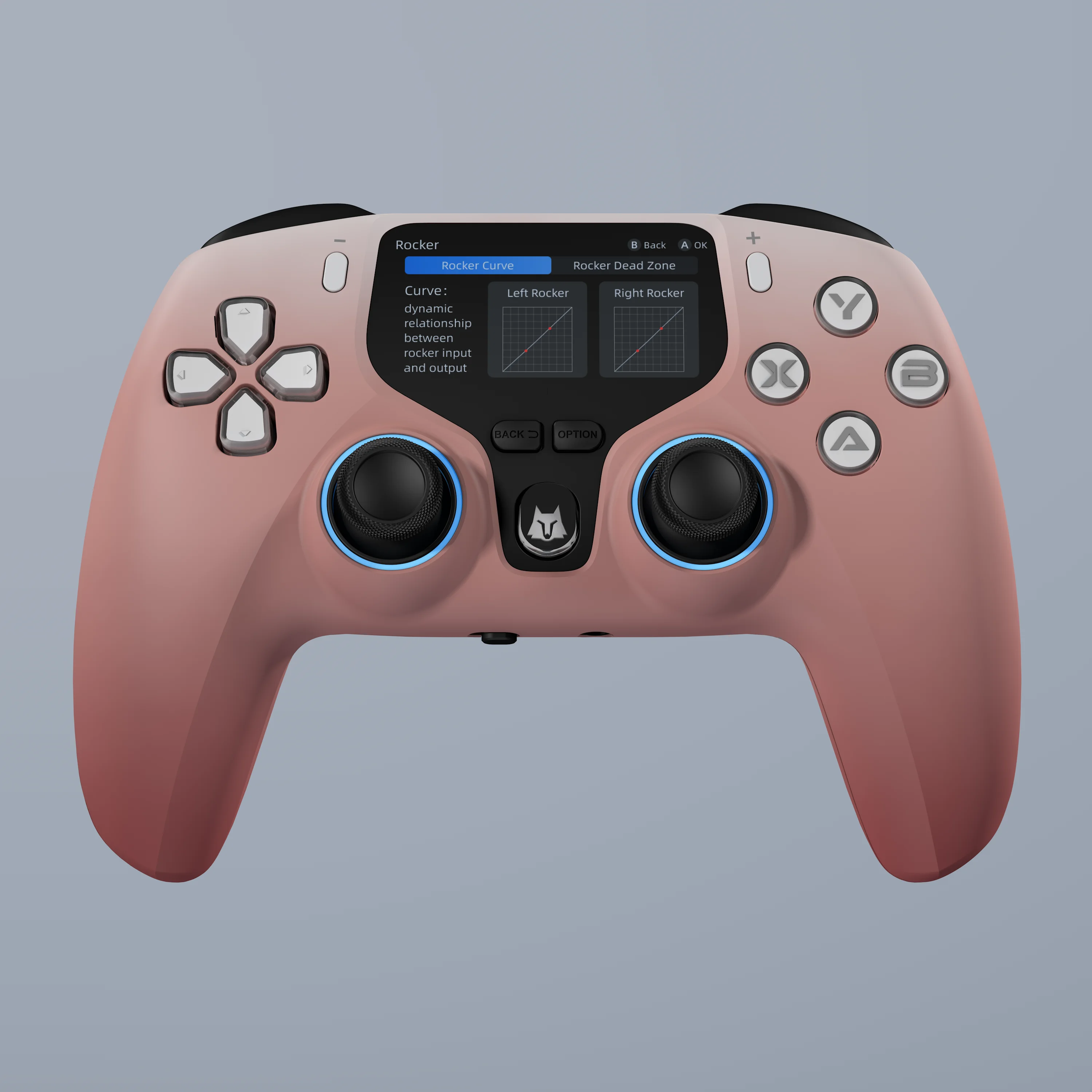

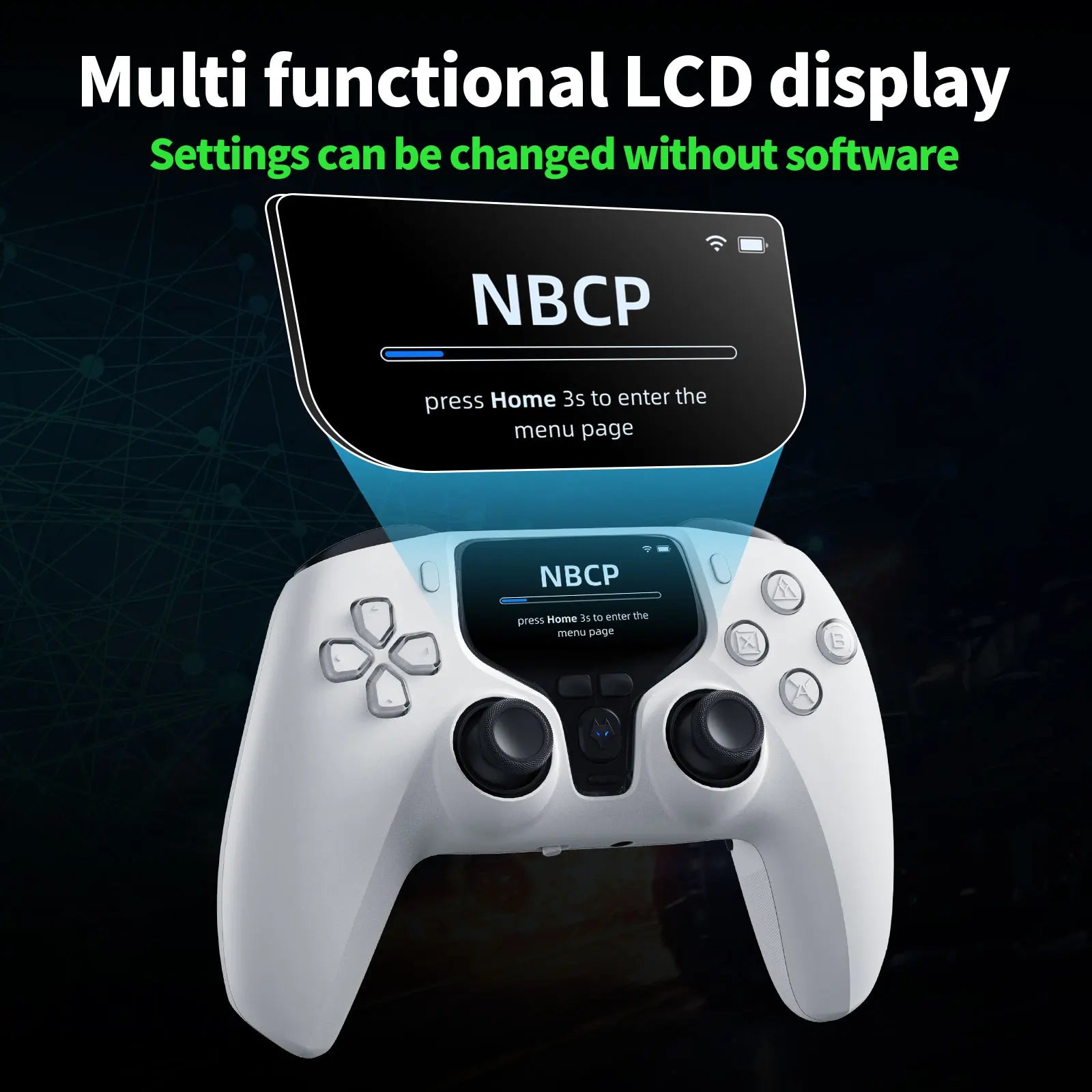

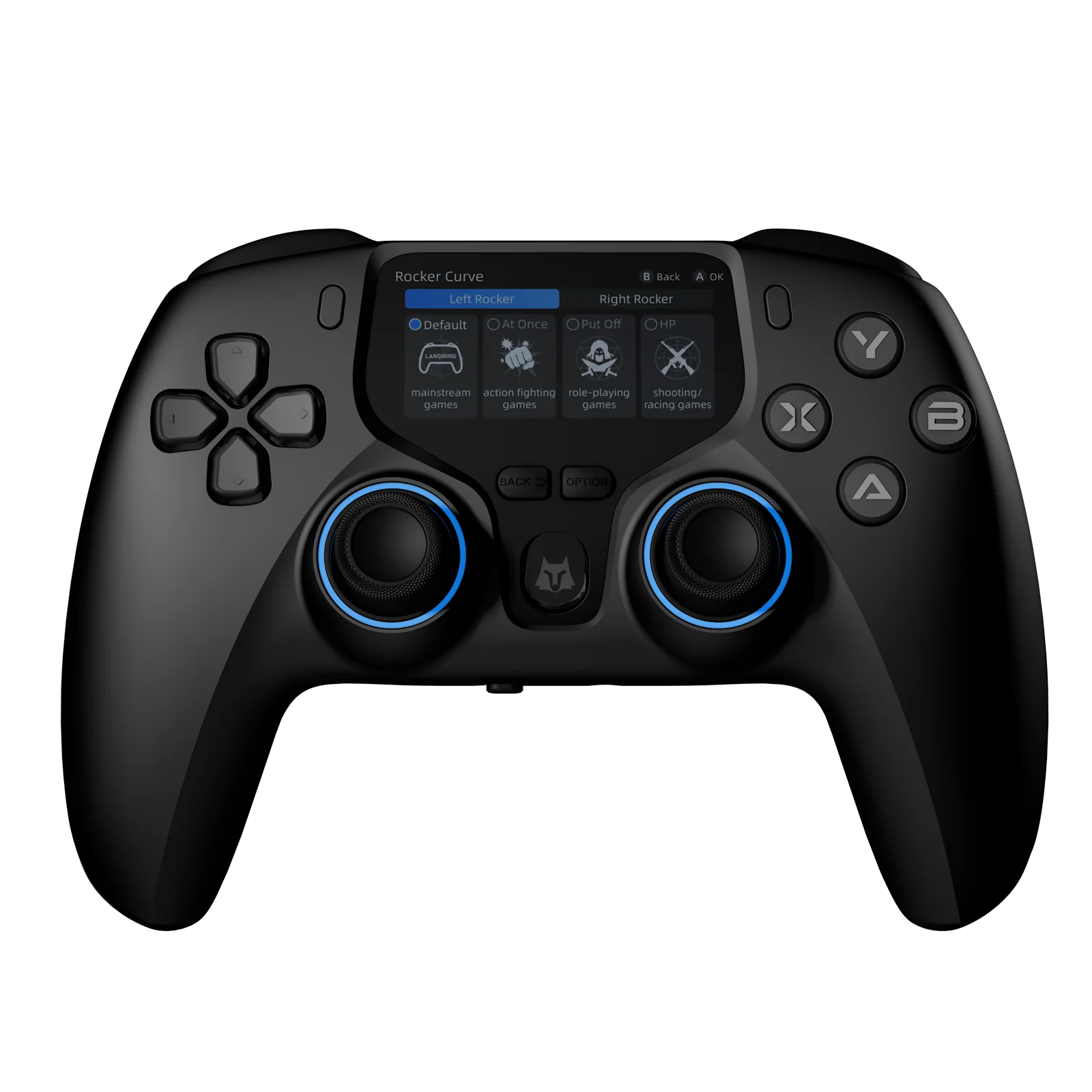

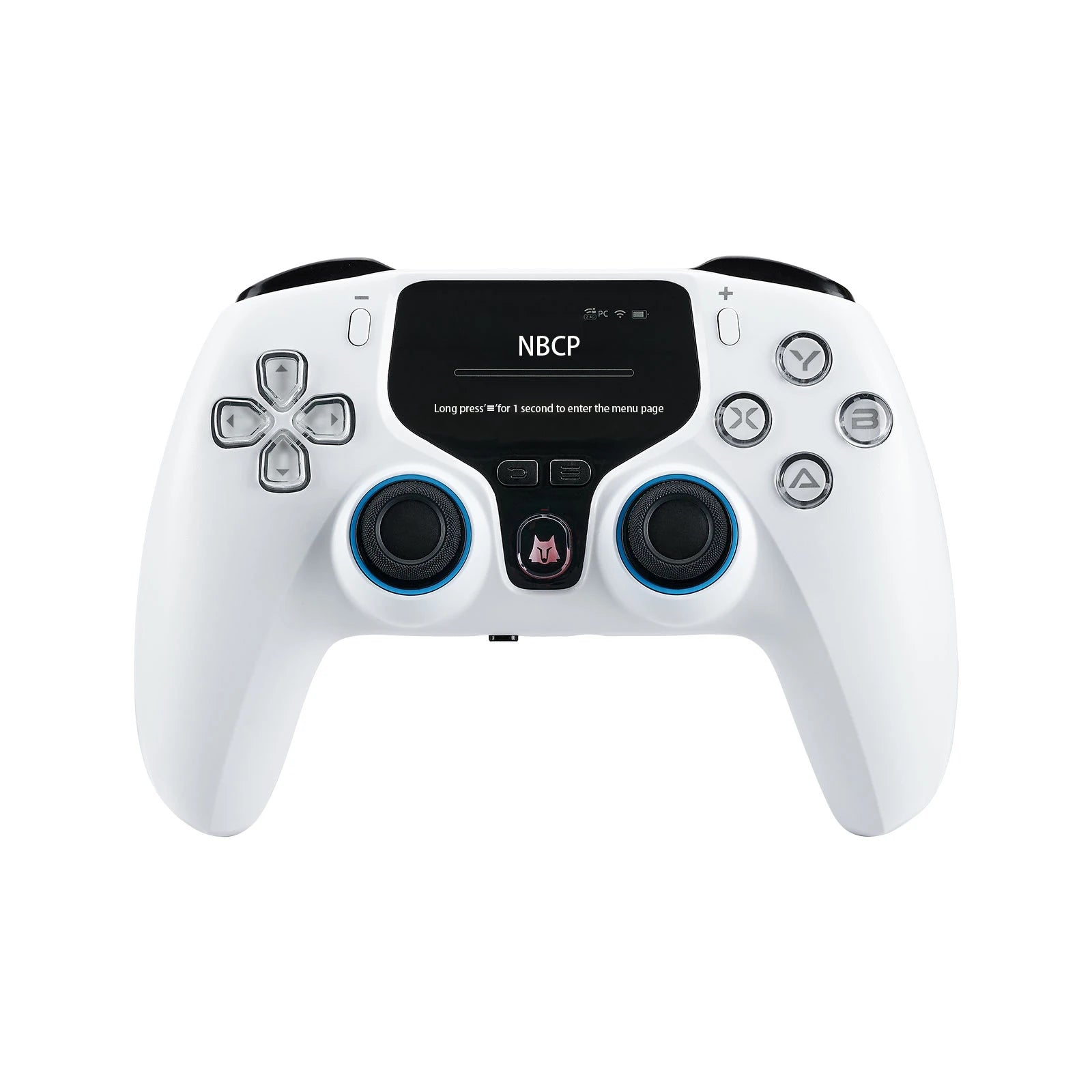

1. Supported Platforms: PC / PS3 / Switch / Android / iOS / Android TV. Includes a display screen.

2. High-Precision Hall Effect Components:

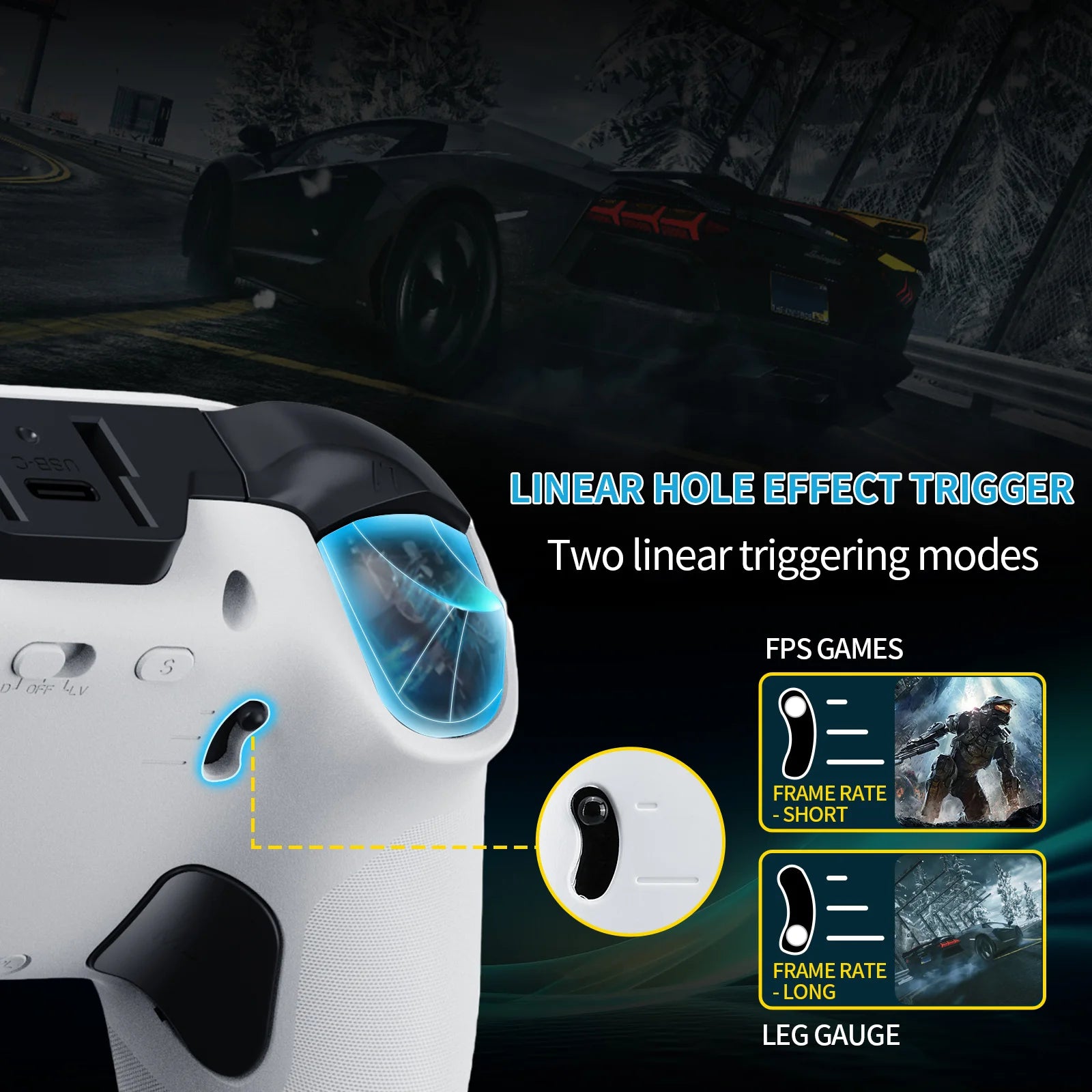

   • Hall Effect Joysticks & Hall Effect Triggers (L2/R2) with adjustable trigger travel (short/long modes).

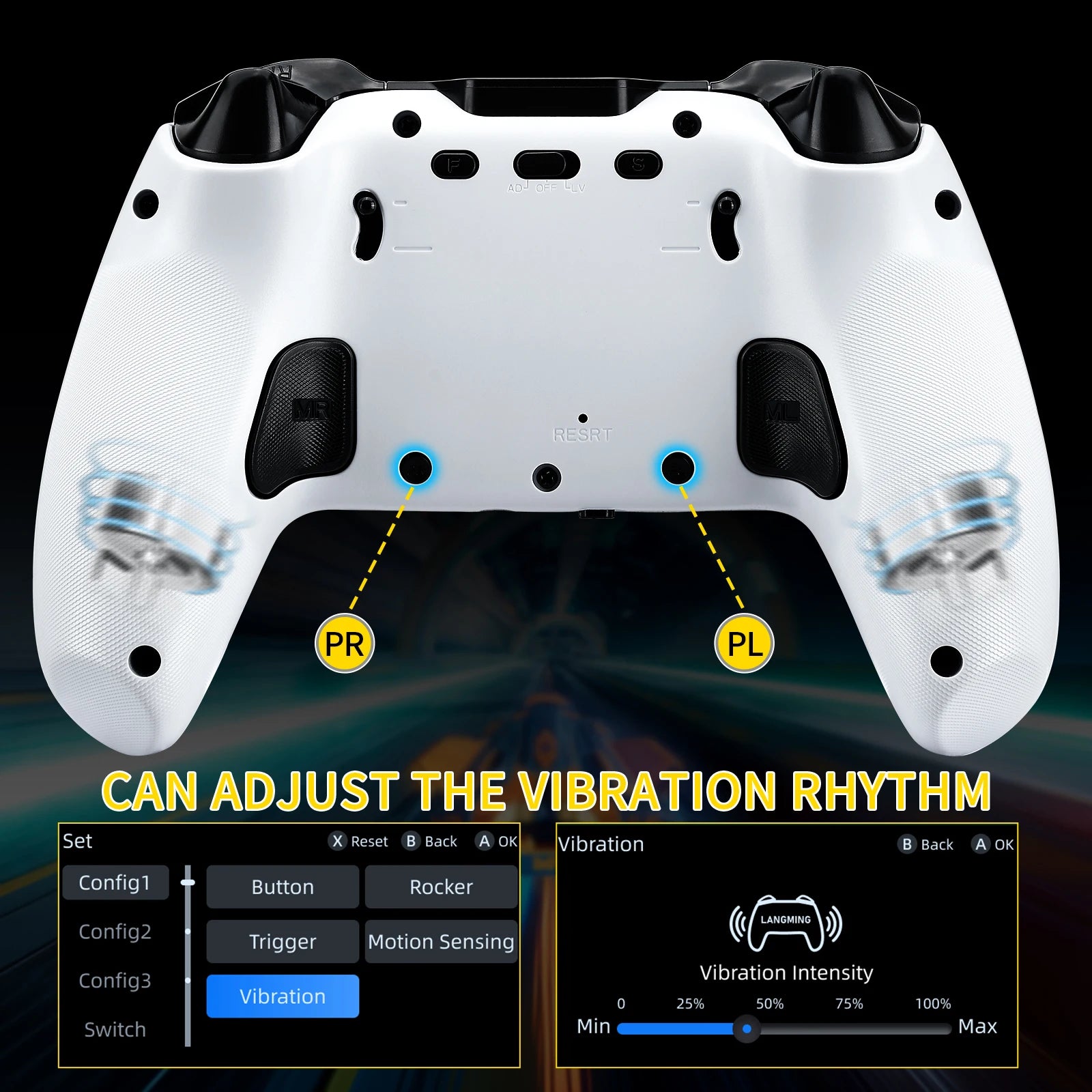

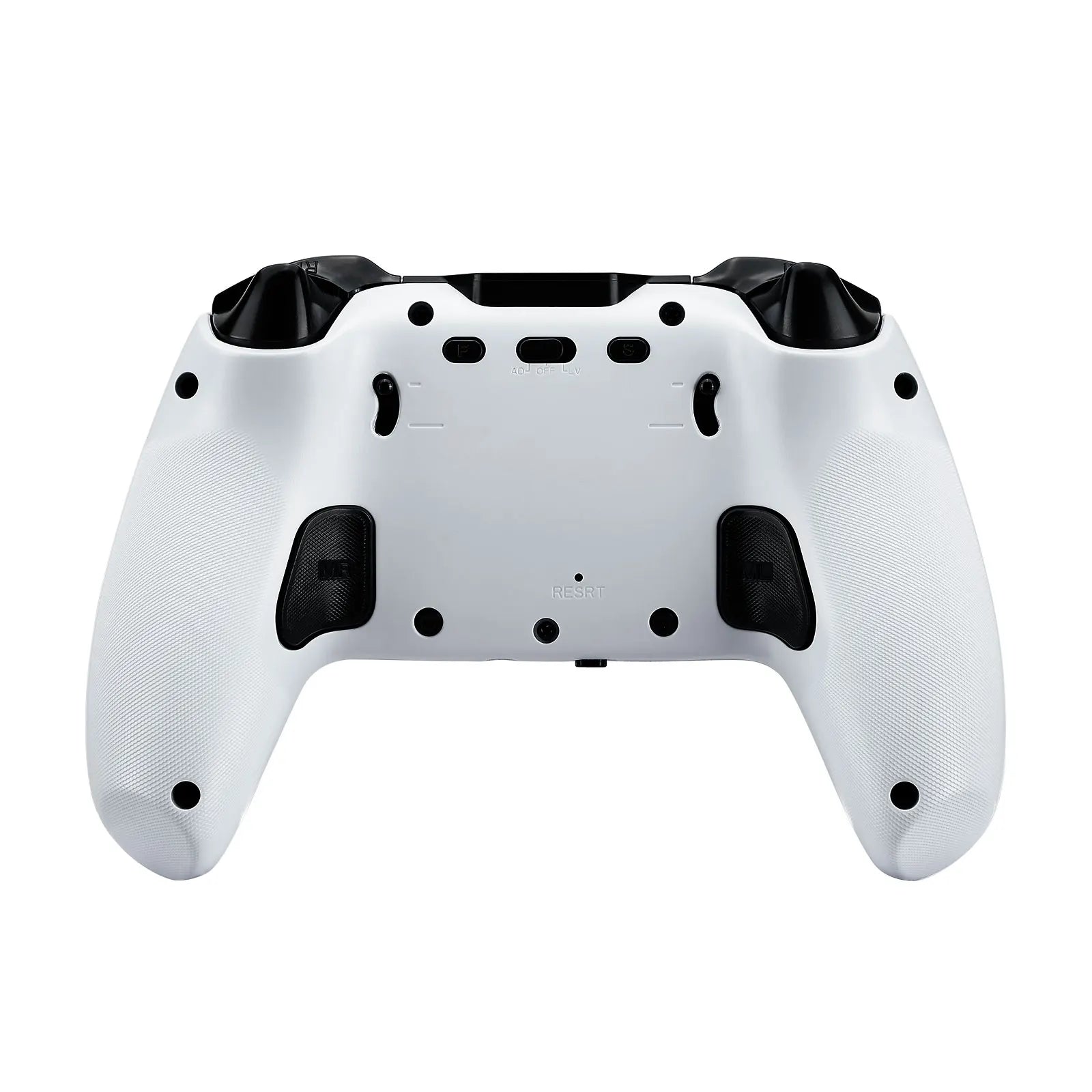

3. Programmable Back Buttons: Customizable rear buttons for enhanced control.

4. 5-Level Vibration Adjustment: Adjustable vibration intensity across 5 levels.

5. Headphone & MIC Support: 3.5mm audio jack with microphone support (wired mode on PC only).

6. Calibration Support:

   • Joystick calibration / Trigger calibration / Gyro calibration.

7. Cross-Platform Gyro Functionality: Gyro sensor compatible with multiple platforms.

8. Independent TURBO/AUTO Key Configuration: Customize rapid-fire (TURBO) and auto-hold (AUTO) settings per button.

9. Adjustable Stick Sensitivity & Dead Zones: Fine-tune left/right joystick response and dead zones.

Special Function Instructions

1. F Key: Fully automatic rapid-fire function key. Compatible buttons for rapid-fire include A/B/X/Y/L1/R1/L2/R2.

   • Setting Method: Press F + Target Button once to enable rapid-fire for that button. Press F + Target Button again to disable rapid-fire.

2. S Key: Semi-automatic rapid-fire function key. Compatible buttons for rapid-fire include A/B/X/Y/L1/R1/L2/R2.

   • Setting Method: Press S + Target Button once to enable semi-automatic rapid-fire for that button. Press S + Target Button again to disable the function.

3. Headphone Switch:

   • The headphone jack supports 3.5mm wired headphones with voice chat functionality.

   • Note: Headphones can only be used in wired mode and are only supported on the PC platform.

   • Operation: Slide the switch to the right to enable headphones and microphone. Slide it to the left to turn them off.

4. L2/R2/Left Stick/Right Stick Calibration:

   • Enter Calibration Mode: While powered off, hold L1 + DOWN and turn on the device. Motor vibration will indicate entry into calibration mode.

   • Calibration Steps:

     • Fully press L2/R2 triggers 2-3 times each through their maximum range.

     • Rotate the left and right sticks in full circles 2-3 times.

   • Save & Exit: Press the A button to save settings. Motor vibration will confirm the exit from calibration mode.
